Selection and installation guidance
Focused guidance extracted from the supplied product catalogs, with direct links to the related product families.

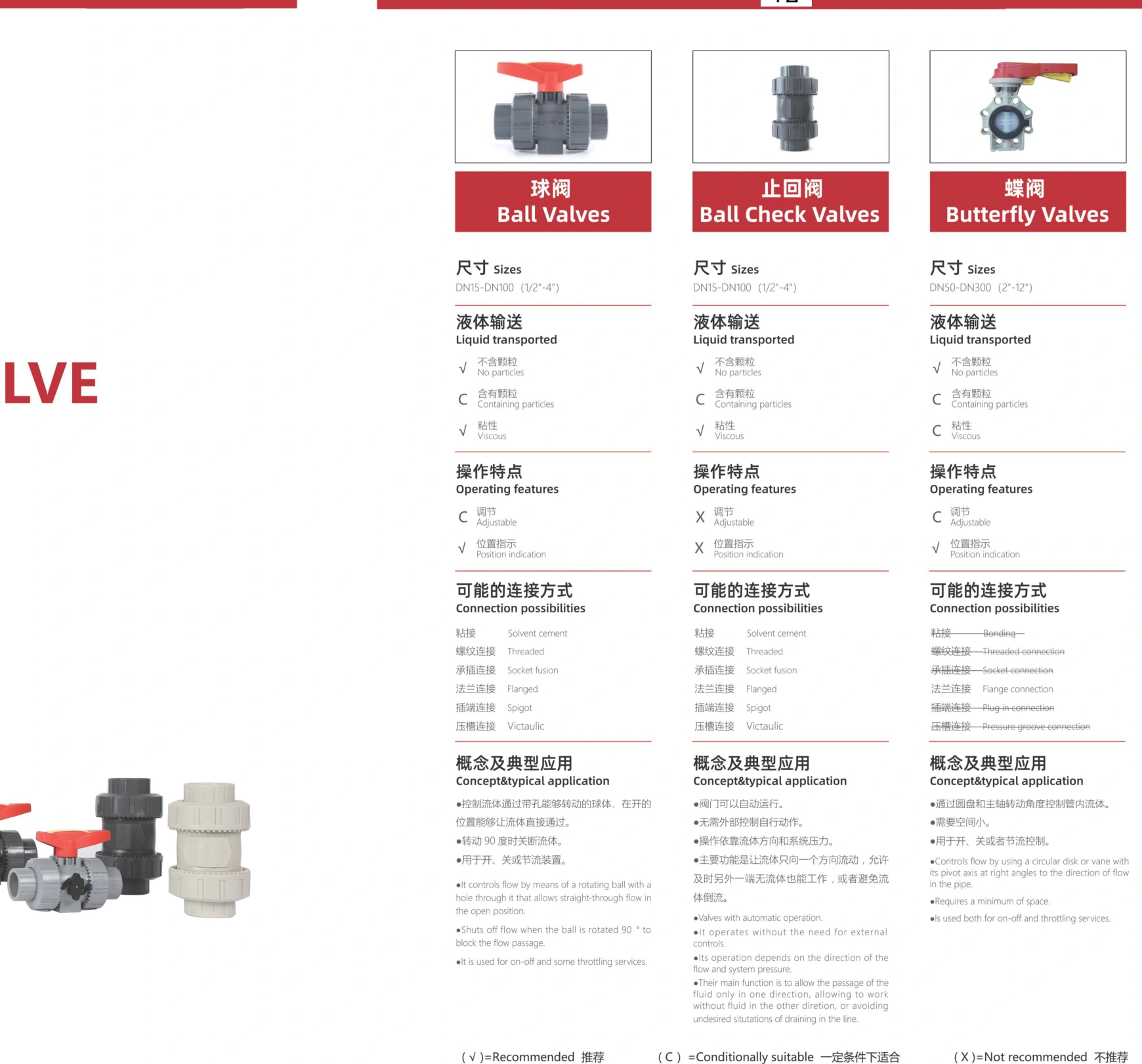

Compare function before material and connection
Compare valve functions before selecting material, size and connection.
Rotating-ball shutoff for on-off service and selected throttling duties. Catalog sizes: DN15–DN100.
Related products ↗Ball check valveAutomatic non-return operation without external controls. Catalog sizes: DN15–DN100.
Related products ↗Plate check valveCompact wafer-style non-return valve for large-flow piping. Catalog sizes: DN50–DN300.
Related products ↗Butterfly valveCompact quarter-turn valve for on-off and throttling duties. Technical tables list DN50–DN300.
Related products ↗
Enlarge image ↗

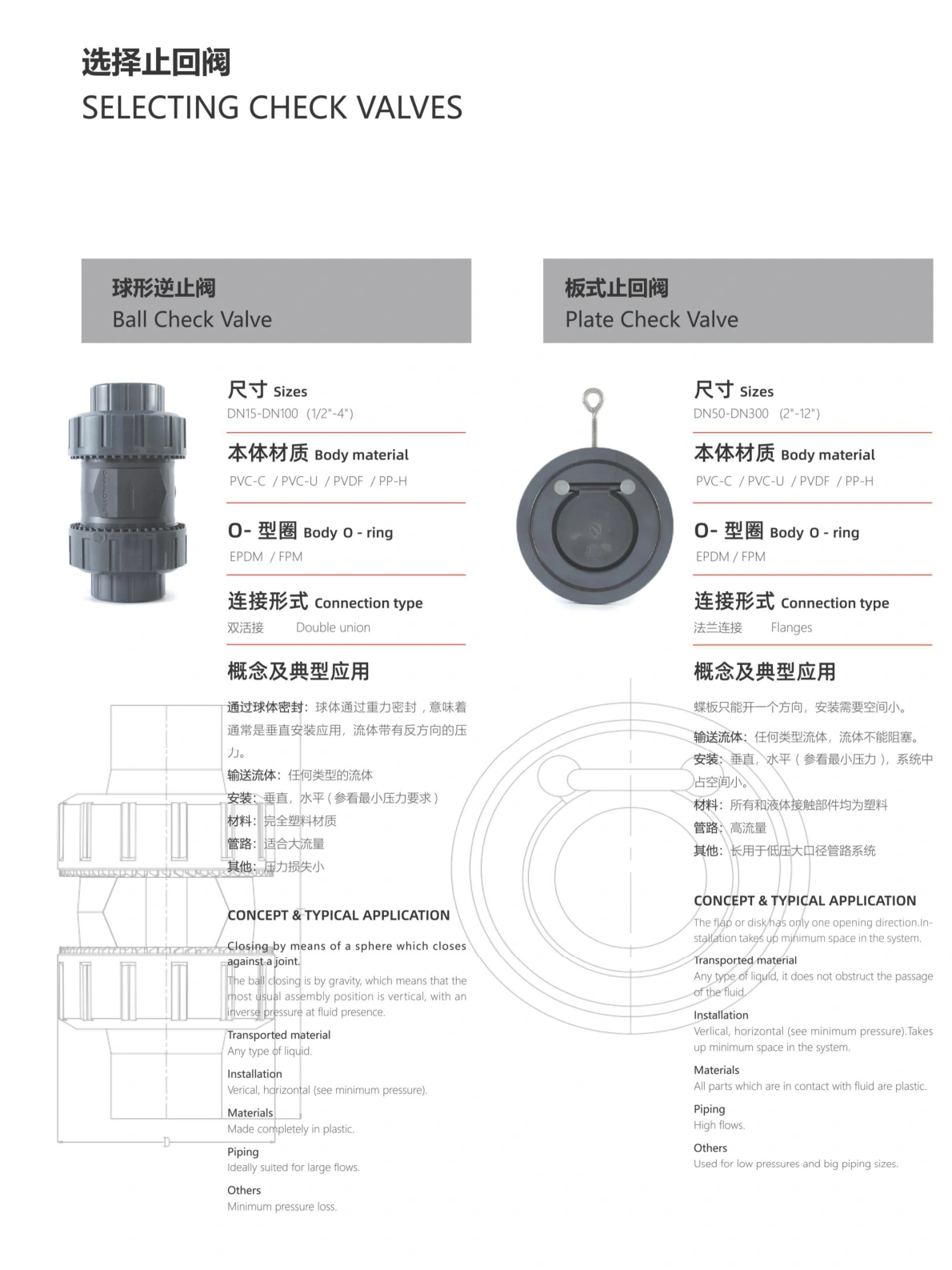

Enlarge image ↗Ball or plate check valve
Compare ball and plate check valves by size, connection and installation needs.
Automatic non-return operation without external controls. Catalog sizes: DN15–DN100.
Compact wafer-style non-return valve for large-flow piping. Catalog sizes: DN50–DN300.

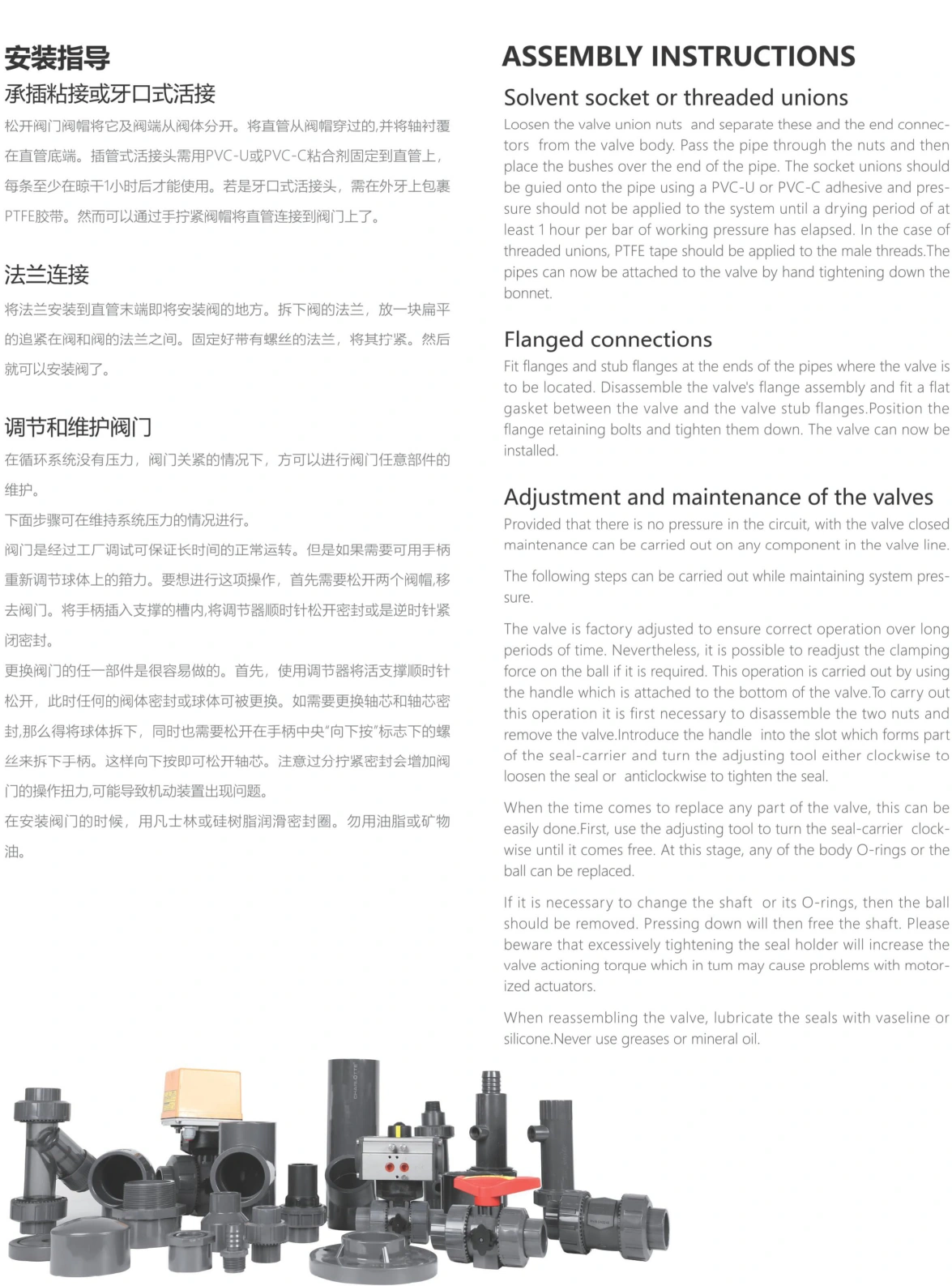

Connections and service procedures
Installation notes

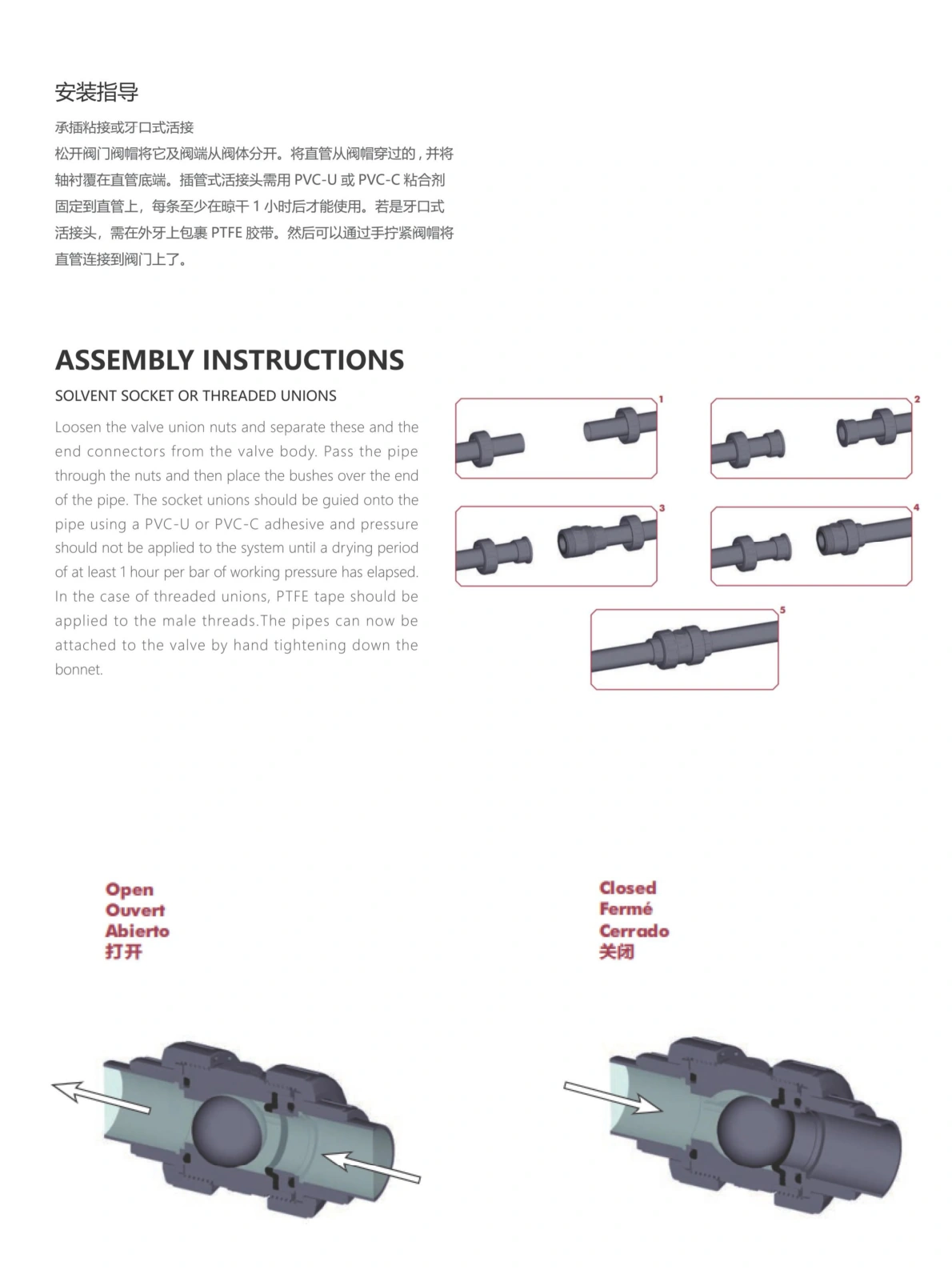

- For PVC-U or PVC-C solvent unions, allow the catalog-stated curing period before pressurizing. Threaded unions use PTFE tape and are hand-tightened.
- For flanged connections, align the valve and stub flanges with a flat gasket, position the retaining bolts and tighten evenly.
Maintenance notes
Maintenance is performed only after the circuit is depressurized. The catalog specifies vaseline or silicone for seal lubrication and warns against grease or mineral oil.
Enlarge image ↗Start from the actual duty point
Start with medium, temperature, solids, flow, head and rated speed.
Flow 3–360 m³/h · head up to 84 m · 2950 / 1450 r/min · 1.6 MPa class. Confirm the medium-specific temperature limit and actual duty point.
