Enlarge image ↗Check Valves / 551 · DIN
PVC-C Plate Check Valve
Product Description
Space-saving wafer check valve for installation between standard flanges.
Technical Specifications
| Available Materials | PVC-C |
|---|---|
| Size Range | DN50–DN300 (2"–12") |
| O-rings | EPDM, FPM |
| Installation | Vertical or horizontal |
| Connection | Wafer body between standard flanges; no gaskets required |
Technical Drawings & Dimensional Tables
Plate check valve description & drawingExpand technical sheet

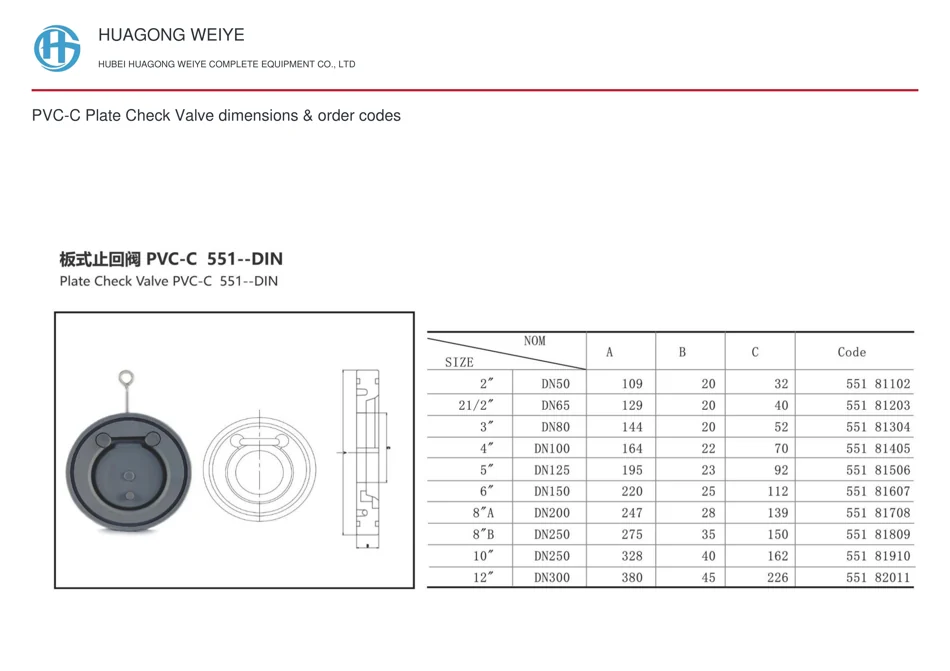

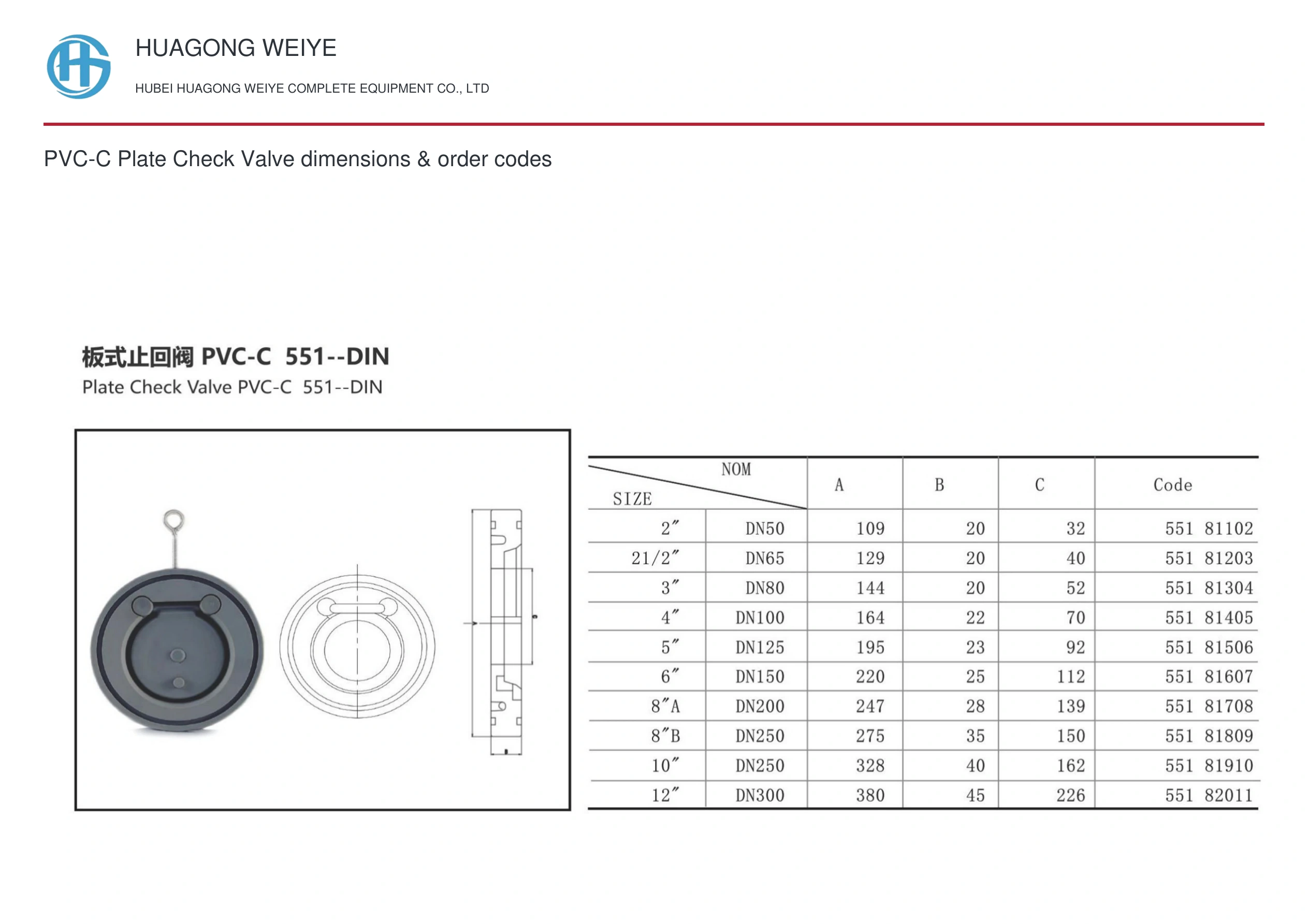

Enlarge image ↗PVC-C Plate Check Valve dimensions & order codesExpand technical sheet
