Metal Seat Ball Valve
Product Description
Metal Seat Ball Valve. Available with manual,pneumatic actuator,electric actuator.
Technical Specifications
| Size Range | DN15-DN200 |
|---|---|
| Body material | WCB,SS |
| Ball material | 304,316,316L |
| Seat material | 304/316/316L/Stellite |
| Pressure Rating | Class150-300,PN10,PN16,PN25,PN40 |
| Connection | Double Flange,Butt welding |
| Operation | Manual,Pneumatic actuator,Electric actuator |
Applications
Ammonia,Chemical,Steel,Metallurgy,Paper,Power for high-pressure,high temperature of water,gas and oil system
Technical Drawings & Dimensional Tables

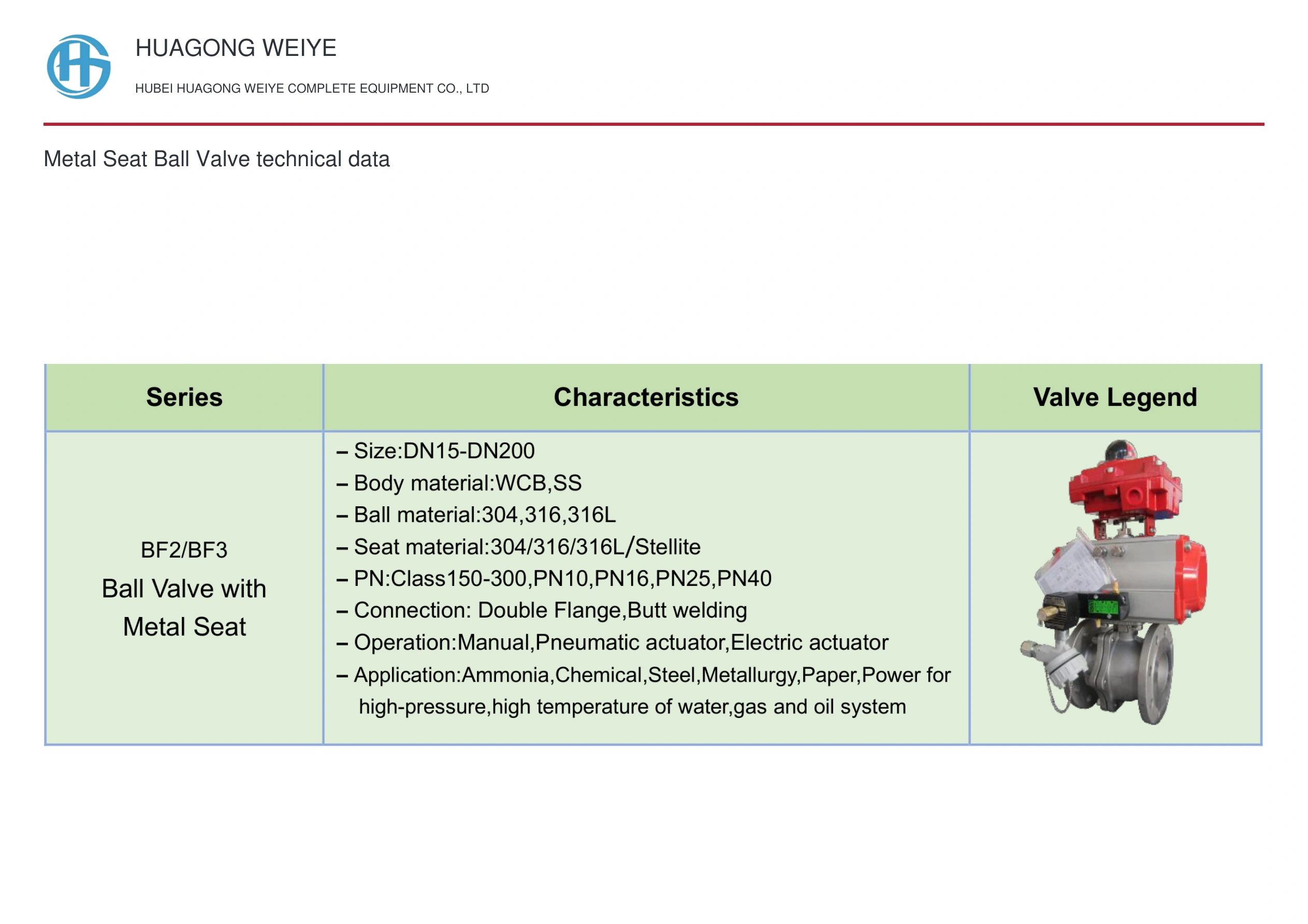

Metal Seat Ball Valve technical dataExpand technical sheet
