Enlarge image ↗Butterfly Valves / Z1
PFA-lined Butterfly Valve
Product Description
PFA-lined Butterfly Valve. Available with manual,pneumatic actuator,electric actuator.
Technical Specifications
| Size Range | DN40-DN800, other size on request |
|---|---|
| Body material | GGG40.3,WCB,Stainless Steel |
| Disc material | 304,316,316L,Stainless Steel lined with PFA |
| Seat material | PTFE,PFA,FPM |
| Pressure Rating | Class150,PN10,PN16 |
| Connection | Wafer,LUG |
| Operation | Manual,Pneumatic actuator,Electric actuator |
Applications
Chlor-alkali,Chemical,Petroleum,Steel,Fine chemical for high corrosion media and harsh media
Technical Drawings & Dimensional Tables

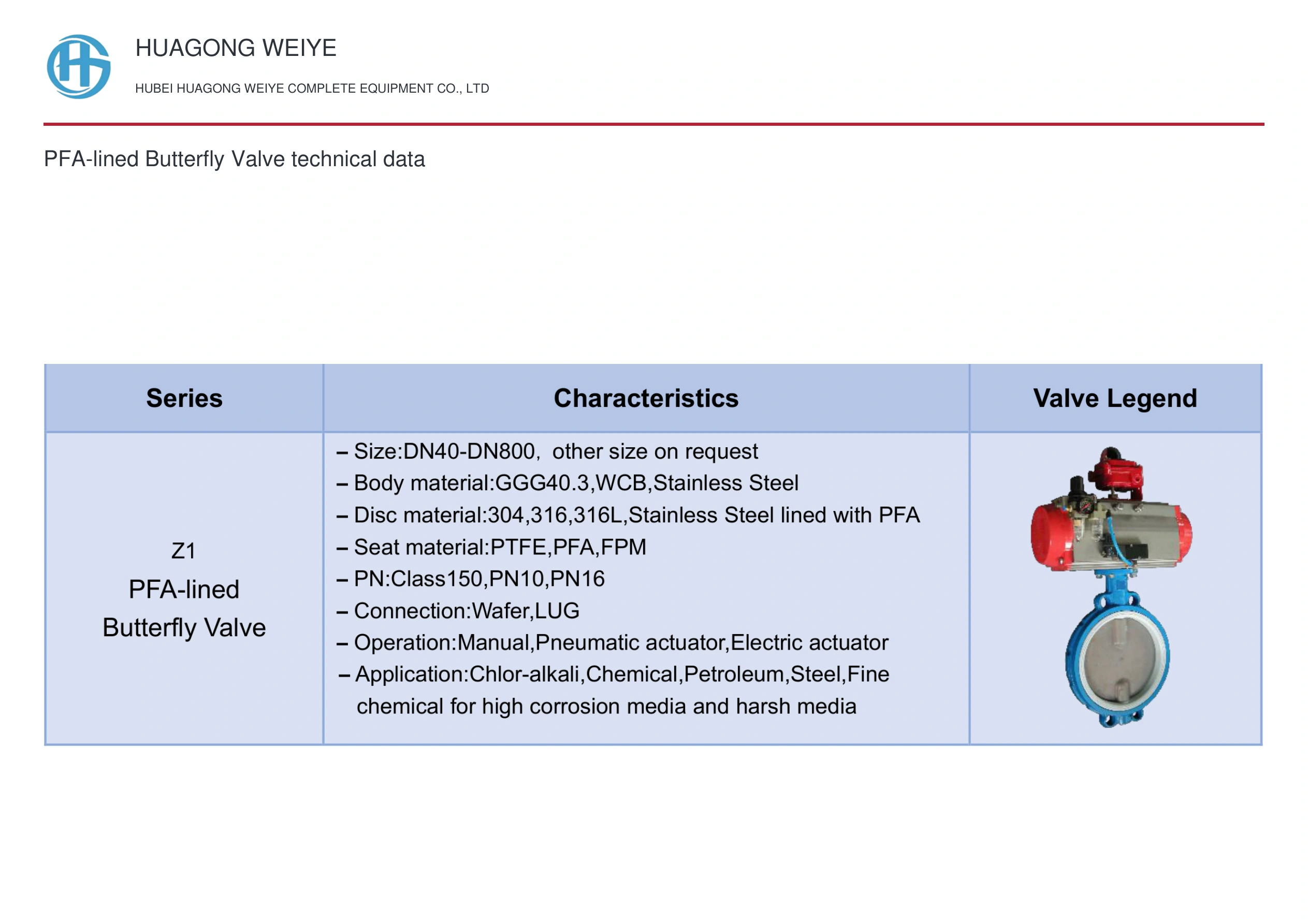

PFA-lined Butterfly Valve technical dataExpand technical sheet
