Rubber-lined Butterfly Valve
Product Description
Rubber-lined Butterfly Valve. Available with manual,pneumatic actuator,electric actuator.
Technical Specifications
| Size Range | DN40-DN1200,other size on request |
|---|---|
| Body material | GGG40.3,WCB,Stainless Steel |
| Disc material | 304,316,316L,GGG30.3 coated with nylon |
| Seat material | EPDM,NBR,Viton,Silicon |
| Pressure Rating | Class150,PN10,PN16 |
| Connection | Wafer,LUG and Double Flange |
| Operation | Manual,Pneumatic actuator,Electric actuator |
Applications
Power,Steel, Metallurgy ,Chemical,Paper,Dip-dye, food, water supply and air conditioner of building, gas pipe system and air pipe system
Technical Drawings & Dimensional Tables

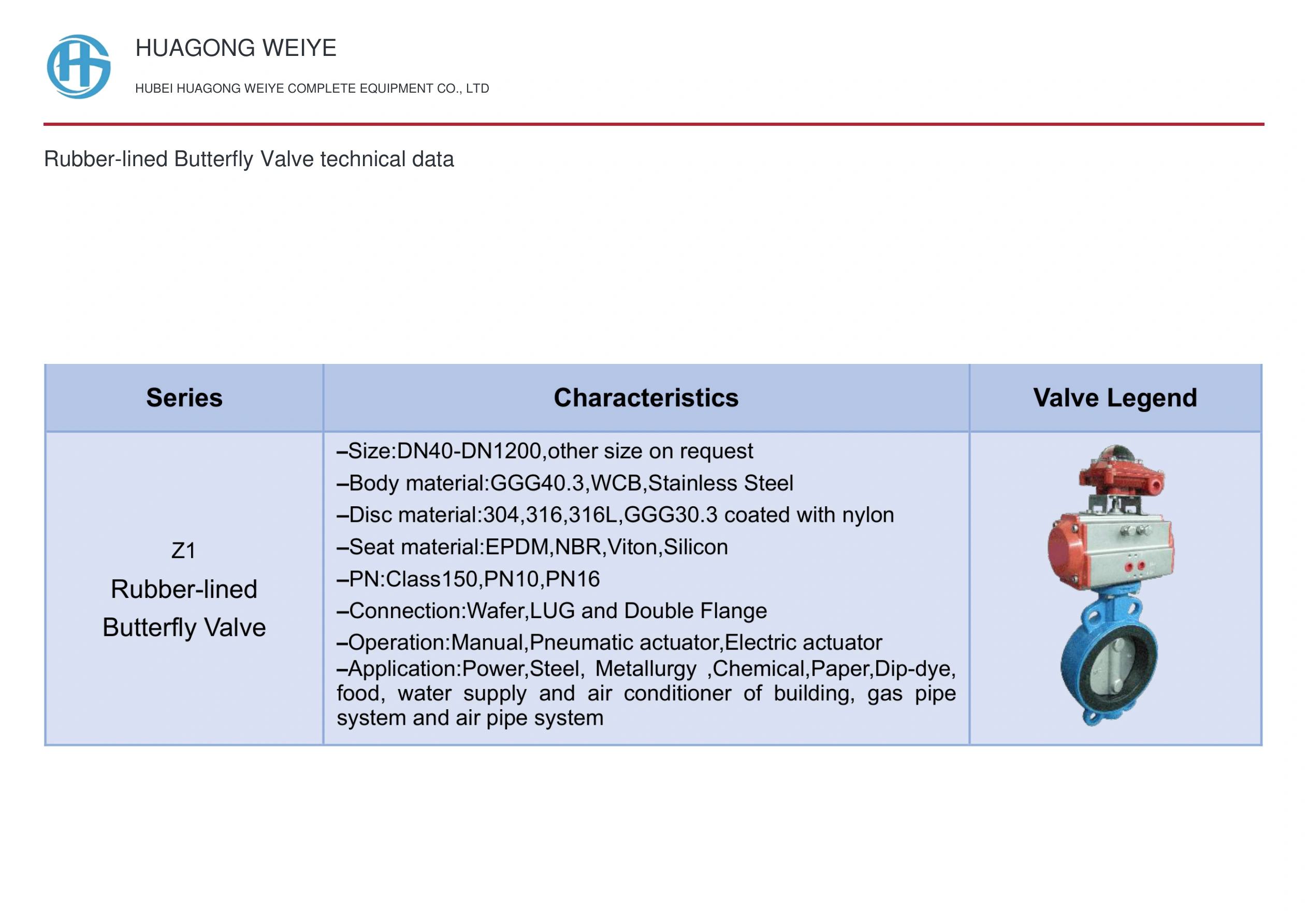

Rubber-lined Butterfly Valve technical dataExpand technical sheet
